08-2W

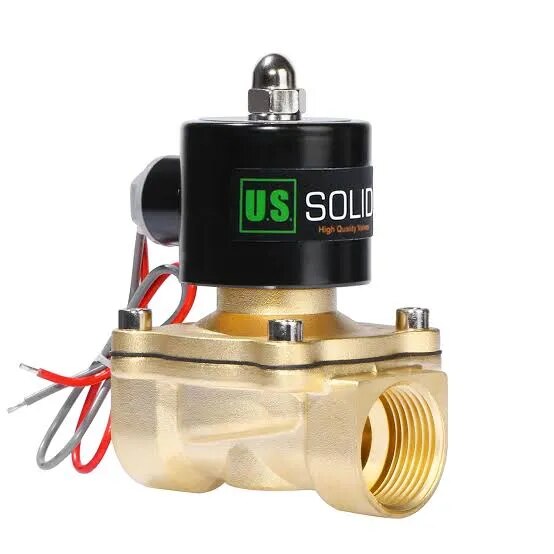

The 2/2 Brass Diaphragm Solenoid Valve is a two-way, two-position (2/2) valve designed to control the flow of liquids and gases automatically. It operates using an electromagnetic solenoid that actuates a flexible diaphragm, allowing or stopping the flow through the valve body.

Built with a high-quality brass body and a durable elastomer diaphragm, this valve provides reliable sealing, corrosion resistance, and long operational life. It is ideal for use in systems handling water, air, inert gases, or light oils where dependable flow control is required.Built with a high-quality brass body and a durable elastomer diaphragm, this valve provides reliable sealing, corrosion resistance, and long operational life. It is ideal for use in systems handling water, air, inert gases, or light oils where dependable flow control is required.

Operation: Normally Closed (NC) or Normally Open (NO)

Diaphragm Material: NBR, EPDM, or Viton (based on media compatibility)

Port Size: 1/4“, 3/8”, 1/2“, 3/4”, 1“, 1-1/2”, or 2" (BSP/NPT threads)

Working Medium: Water, air, light oil, non-corrosive fluids

Working Pressure: 0.3 – 10 bar (varies by model)

Temperature Range: -10°C to +80°C (standard); up to +120°C with Viton diaphragm

Voltage Options: DC12V, DC24V, AC110V, AC220V

Power Consumption: 8–15W (approx.)
