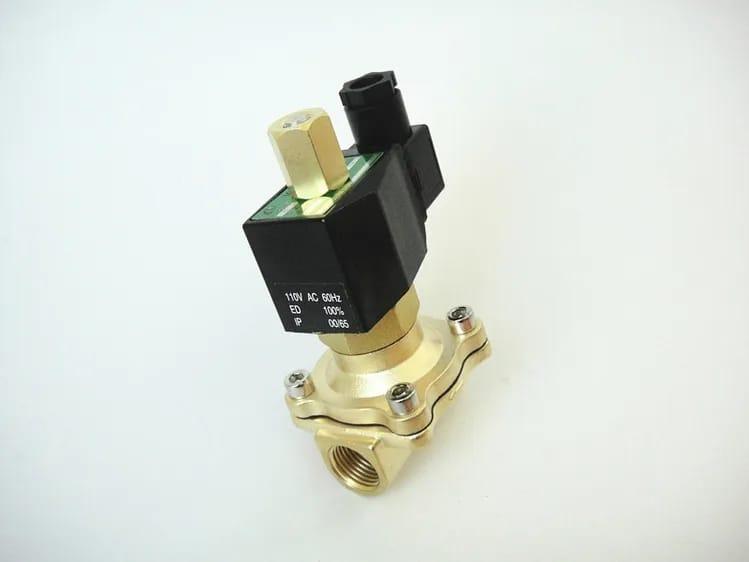

The 2W-160-15 N/O Solenoid Valve is a 2/2-way (two-way, two-position) normally open solenoid valve designed for the automatic control of air, water, gas, and light oil. When the solenoid coil is de-energized, the valve remains open to allow flow; when energized, the valve closes to stop the flow. Constructed with a durable brass body and a high-quality diaphragm, this valve provides reliable sealing, corrosion resistance, and long service life. It is widely used in water treatment systems, pneumatic automation, and fluid control applications. Parameter Description Model 2W-160-15 N/O Valve Type 2/2 Way (Normally Open) Operation Mode Direct Acting Diaphragm Type Port Size 1/2" (DN15) Body Material Brass Seal Material NBR (Standard) / Viton / EPDM (Optional) Working Medium Air, Water, Gas, Light Oil, Non-corrosive Fluids Working Pressure 0–0.7 MPa (≈ 0–7 bar) Max Pressure Resistance 1.0 MPa Operating Temperature -10°C to +80°C (up to +120°C with Viton) Coil Voltage Options DC12V, DC24V, AC110V, AC220V Power Consumption Approx. 8W (DC) / 15VA (AC) Mounting Position Any (preferably coil upright) Response Time Opening ≤ 0.05s / Closing ≤ 0.05s
