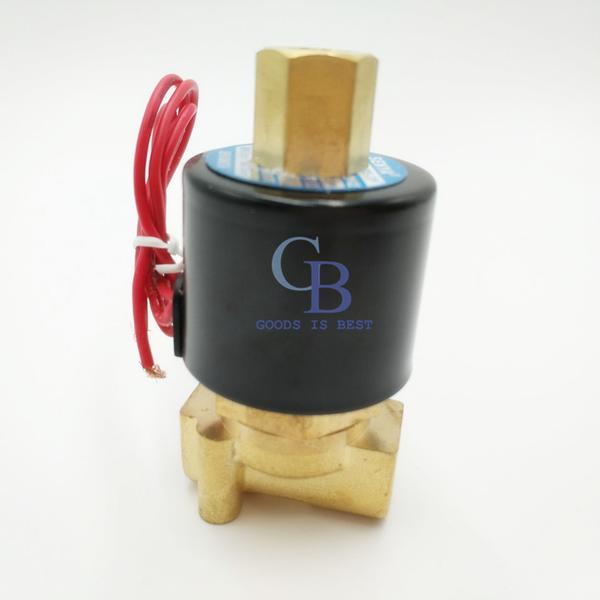

The TP22-08 is a compact, economical 2-port, 2-way solenoid valve from the Techno TP Series. It features a quarter-inch (¼″) port size, designed for use with filtered, lubricated compressed air, with a working pressure up to about 10 bar and ambient/medium temperatures of approx 5 °C to 50 °C. The valve supports various coil voltage options making it flexible for different supply systems. In its de-energised state (dependent on variant) it remains in one position (usually closed in standard economy models), and when the coil is energised it switches state, enabling control of pneumatic flow in automation or industrial air circuits. Port size: ¼″ (1/4″) Way: 2/2 (two-way) Pressure: Up to ~10 kgf/cm² (≈10 bar) Temperature: ~5-50 °C Medium: Filtered, lubricated compressed air (~40 µm) Coil voltage: Options (12 VDC, 24 VDC, 24 VAC, 220 VAC) – confirm variant Thread size: ¼″ (6.35 mm) or as per listing Series: TP Series (Techno)
