Y-15

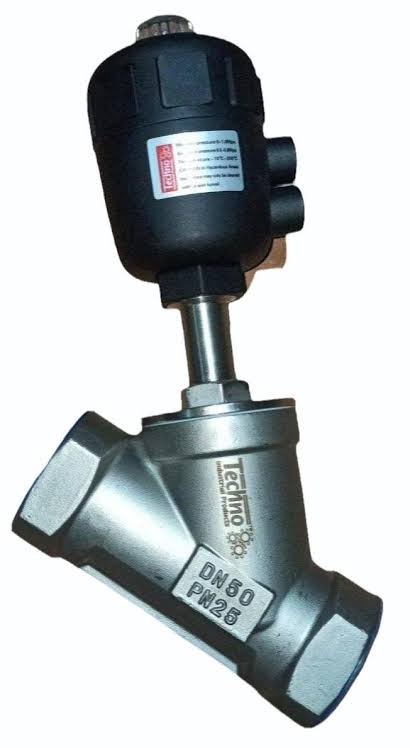

The Y-Type Angle Valve (also known as a Y-Type Control Valve or Angle Seat Valve) is a high-performance valve designed to control the flow of air, water, steam, gases, or other fluids in industrial pipelines. Its distinctive Y-shaped body provides a streamlined flow path, reducing flow resistance and minimizing pressure drop — making it highly efficient for applications requiring frequent on/off or modulating control.

Design: Y-type / Angle seat configuration for smooth flow and minimal turbulence

Operation: Pneumatically or electrically actuated (Single Acting or Double Acting)

Body Material: Stainless Steel (SS304 / SS316), Brass, or Bronze depending on application

Seat/Seal Material: PTFE / EPDM / NBR for chemical and temperature resistance

Pressure Rating: Typically up to 16 bar (varies by model and size)

Temperature Range: –10°C to +180°C (steam-rated variants up to +220°C)

End Connection: Threaded (BSP/NPT), Flanged, or Tri-Clamp options

Sizes Available: DN15 (½″) to DN80 (3″) or larger

Parameter Specification

Type Y-Type Angle Seat Valve

Operation Pneumatic, Single Acting (Spring Return)

Body Material Stainless Steel 316

Seat Material PTFE

Pressure Range 0–16 bar

Temperature Range –10°C to +180°C

Media Air, Water, Steam, Neutral Gases

End Connection BSP Threaded / Flanged

Sizes ½″ to 3″ (DN15–DN80)
