2S-025-08

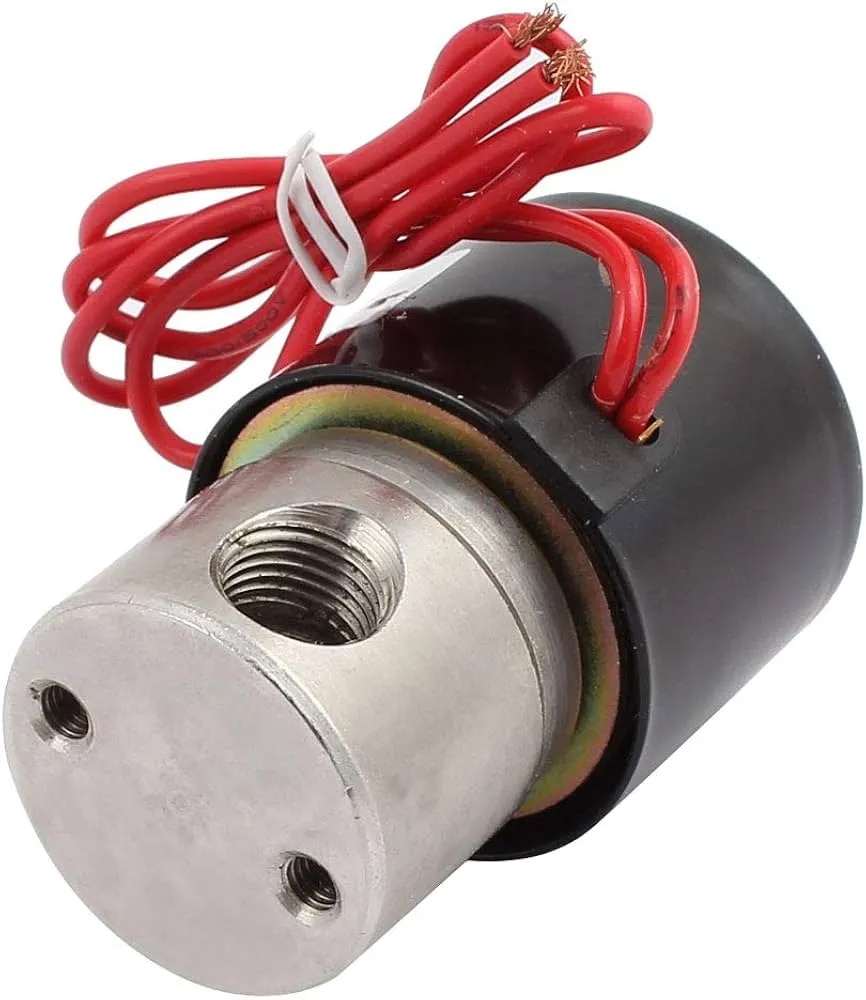

The 2S-025-08 is a compact, economical 2-way, 2-position solenoid valve in the 2S Series designed for general pneumatic or low-pressure fluid systems. In its standard configuration it is normally closed (i.e., in the de-energised state the valve remains shut, and when the coil is powered the valve opens). The valve features a ~¼″ (DN08) port size, small orifice (~2.5 mm) and is suitable for use with filtered air, water or non-corrosive fluids up to about 10 bar, with ambient and media temperature around -5 °C to +80 °C in many variants. Its construction allows for quick switching and compact installation in automation, pneumatic control or fluid circuits.

Port size: ¼″ (DN08)

Orifice: ~2.5 mm

Pressure range: Up to ~1.0 MPa (10 bar)

Temperature range: approx -5 °C to +80 °C (depending on seal material)

Body material: Stainless steel variant (some listings), possibly brass in other variants

Function: Normally Closed (default) for many versions; check if normally open variant exists

Coil voltage: Various options (12 V DC, 24 V DC, 220 V AC) depending variant

Medium: Filtered air (e.g., 40 micron), also water, light oil, gas
