Pneumatic solenoid valve

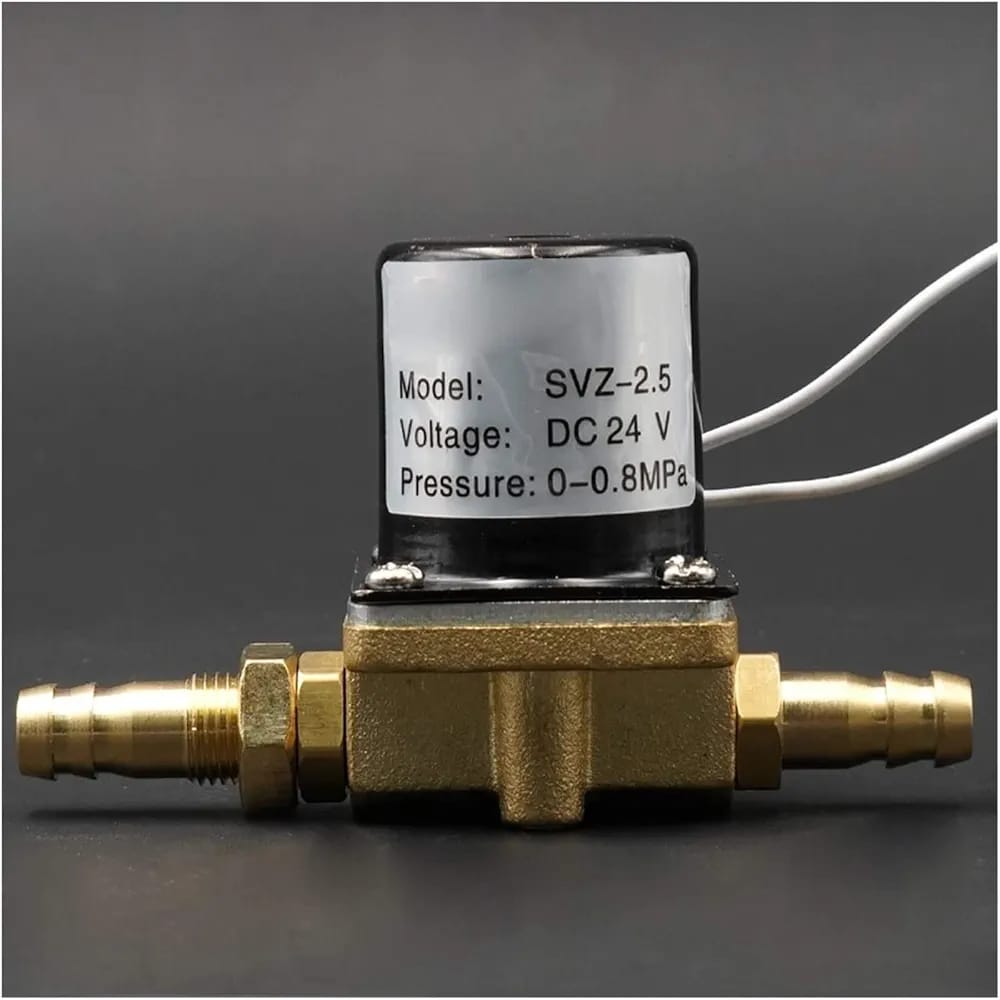

SVZ-2.5

Contact Us

Phone Number

08048035056

Please keep 0 before dialling the number.

Email Address shp9223306963@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address 39, Om Arcade, Ground Floor, Plot No. 1, Sector 20, Nr. Janta Market ,Turbhe ,Navi Mumbai

Navi Mumbai, India, 400705

Description

The SVZ-2.5 is a compact, economical 2-way solenoid valve designed primarily for use in welding machines, pneumatic control circuits or gas distribution systems. The “2/2” configuration means it has two ports and two switching positions (open/closed). With an approximate 2.5 mm orifice, it allows moderate flow rates suitable for control of air, inert/gas flows (e.g., argon/CO₂) or light fluids depending on variant. In its de-energised state (for the “normally closed” version) the valve blocks flow; when energised, it opens (some may be N.O. or N.C. depending model—check your supplier). Valve type: 2/2 way Port size/thread: ~ 1/8″ (G1/8) or hose ~8 mm Orifice: ~2.5 mm Max pressure: ~10 bar (in air applications) Temperature: ~5 °C to 50 °C (depending variant/seal) Coil voltages: Variants eg. 24 V DC, 220 V AC Body material: Brass (in many gas/welding variants) Medium: Filtered air, inert gas, light fluids (check compatibility)

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
PNEUMATIC VALVE

HAND LEVER VALVE 1/4" X 5/2

A Hand Lever Valve 1/4" × 5/2 is a type of manually operated directional control valve used mainly in pneumatic systems (compressed air circuits). This means the valve is operated manually using a lever. When you push or pull the lever, it changes the airflow direction. Refers to the size of the inlet and outlet ports (usually 1/4 inch BSP or NPT threads). This determines how much air can flow through the valve and what piping it connects to.

6814772a5d263414004dd4a4 Card 2

product image
PNEUMATIC VALVE

HAND SLIDE VALVE MALE X FEMALE

A Hand Slide Valve (Male × Female) is a manually operated valve used to start, stop, or regulate the flow of fluids such as water, air, oil, or other non-corrosive media in pipelines. It is simple in design and widely used in basic industrial and utility applications.

6814772a5d263414004dd4a4 Card 2

product image
PNEUMATIC VALVE

ANGLE SEAT VALVE FLANGE TYPE

An angle seat valve is a 2/2-way valve where the inlet and outlet are arranged at an angle (typically 90°), allowing for smooth flow with minimal pressure loss. The flange type refers to its end connections, which are designed to be bolted to pipeline flanges for secure and leak-proof installation.
